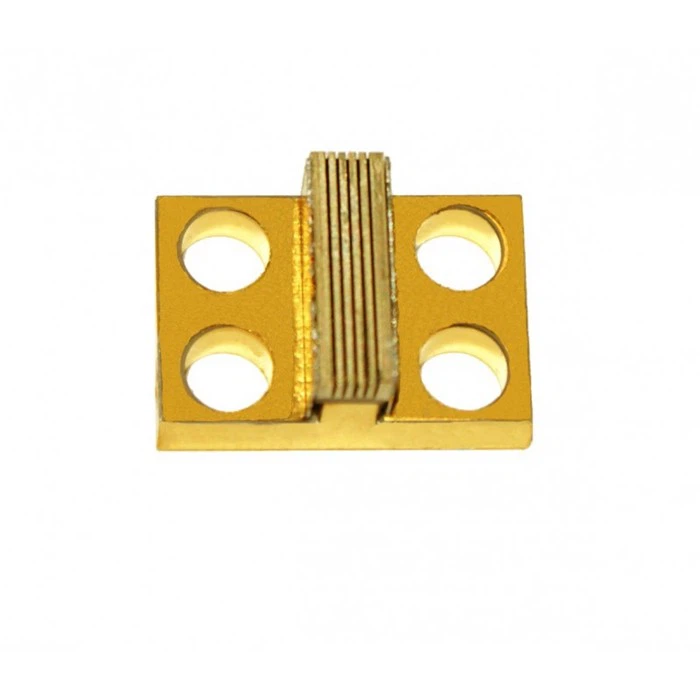

1000W 976nm QCW Conduction Txias Kab rov tav Laser Stack
Qhov tseem ceeb:
- Cov zis hluav taws xob ib Bar: 100W
- Center Wavelength: 976nm
- Lub wavelength kam rau ua: ± 5nm
- Bar -rau -Bar Spacing: 1.8mm
Daim ntawv thov:
- Tub rog
- Kev tiv thaiv
- Kev tshawb fawb
1.Laser Stack Wavelength: 405nm ~ 2100nm, raug nthwv dej yog 808nm, 9XXnm
2. Fais fab tuag: 100W rau ntau txhiab watts.

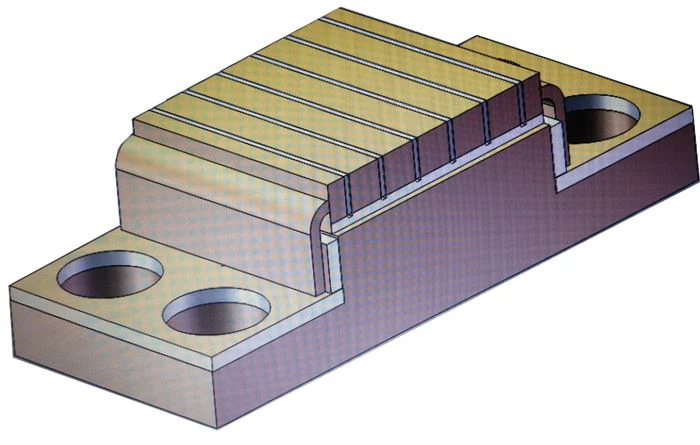

3. Ntau yam pob hom qhia raws li cov duab hauv qab no
Specification:
Yam khoom: 976nm 1000W Kab rov tav Array Diode Laser
Yam Tsis Tau: CC976HA1000
| Optical yam ntxwv | |
| Center Wavelength λ | 940nm, 976nm, 980nm |
| Wavelength kam rau ua | ± 5nm |
| Output Power Ib Bar | 100W |
| Number of Bars | 1-15 |
| Bar -rau -Bar Spacing | 1.8mm ib |
| Spectral Width FWM | Tsawg dua los yog sib npaug li 4 |
| Spectral Dav FW90% E | Tsawg dua los yog sib npaug li 6 |
| Fast Axis Divergence FWHM | 35 degree |
| Slow Axis Divergence FWHM | 8 Qib |
| Polarization hom | TE/TM |
| Wavelength Temp. Coefficient | ~ 0.28nm / degree |
| Cov yam ntxwv hluav taws xob | |
| Kev khiav hauj lwm tam sim no Iop | Tsawg dua lossis sib npaug li 30A |
| Threshold Current Ith | Tsawg dua los yog sib npaug li 10A |
| Ua haujlwm Voltage Vop | Tsawg dua los yog sib npaug rau 90V |
| Slope Efficiency | Ntau tshaj lossis sib npaug rau 1W / A |
| Fais fab Hloov Efficiency | Ntau dua lossis sib npaug li 42% |
| Thermal Parameters | |
| Ua haujlwm kub | 15 ~ 30 degree |
| Cia Kub | 0 ~ 55 degree |
| Coolant | Deionized dej |
| Flow Rate / Bar | 0.4 ~ 0.7L / min |
| Max Inlet Siab | 380 kPa ua |
| Kev tiv thaiv | 0.2-0.5 MΩ * cm |
Lub 1000W 976nm Kab rov tav Stack Diode Laser Linear Array yog tsim tshwj xeeb los xa cov kev ntseeg siab tshaj plaws thiab kev ua neej nyob hauv lub zog siab kab noj hniav, sab - cov ntawv siv twj tso kua mis. QCW array nta kev ua kom txias, tshem tawm qhov xav tau ntawm cov dej txias. Standard angled arrays muaj nyob rau hauv wavelengths ntawm 808nm, 915nm, thiab 976nm. Kev cai configurations thiab lwm yam wavelengths tuaj yeem muab tau raws li cov kev cai tshwj xeeb.
