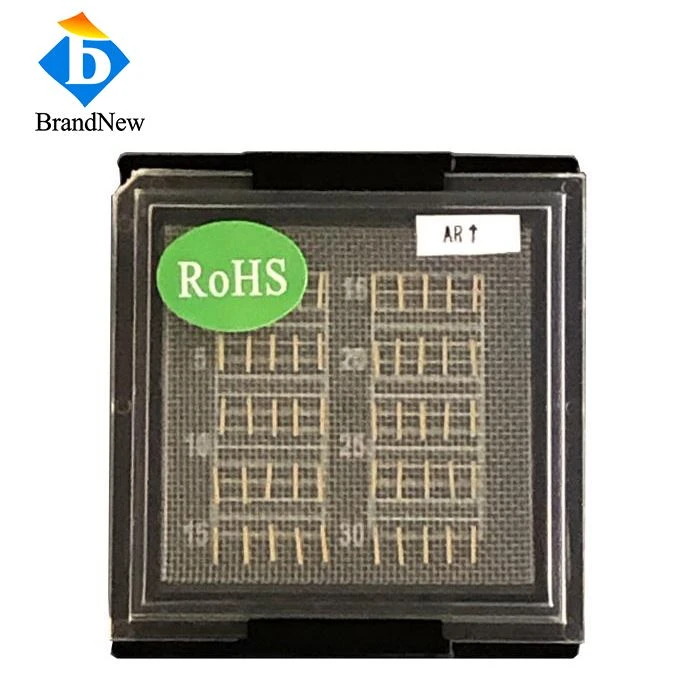

1W 1550nm Ib Emitter Unmounted Laser Bar
1W 1550nm Ib Leeg Emitter Unmounted Laser Bar yog tsim tshwj xeeb rau kev siv hauv Lidar systems, uas yog siv rau hauv cov ntawv thov xws li tsheb tsav tsheb, drones, thiab nrhiav ntau yam. Lub 1550nm wavelength yog qhov zoo tagnrho rau kev kuaj cov pa cua hauv huab cua, av noo, thiab lwm yam kev hloov pauv ib puag ncig.
Featured duab:
Ib leeg Emitter Laser Chip
Siab zog thiab siab beam siv IR laser hluav taws xob
Cov kab dav dav ntawm 1550 ± 10nm
Tsawg beam divergence thiab me me lub teeb emitting aperture
Kev ua haujlwm ruaj khov thiab txhim khu kev qha
Daim ntawv thov:
Lidar,
Autonomous Tsav Lidar,
Cua Sensing Lidar,
Fiber Laser Seeding
Daim ntawv qhia:
Yam khoom no: LC1550SE1
|
Kho qhov muag |
|
|
Center Wavelength |
1 550nm |
|
Tso zis zog |
1.5W |
| Fast -Axis Divergence |
32 Deg |
|
Slow-Axis Divergence |
12 Deg |
|
Ua hauj lwm hom |
CW |
|
Hluav taws xob |
|
|
Kev khiav hauj lwm tam sim no Iop |
4A |
|
Threshold Current Ith |
0.5A |
|
Ua haujlwm Voltage Vop |
1.6V |
|
Kub |
|
|
Ua haujlwm kub |
25 degree |
|
Cia Kub |
-30 ~ 70 degree |
![G$W(L@3_FS1BXJ6S7]84B`E](/Content/uploads/202098745/20200724132720d232550b4418459e8593d5b591cf68b2.png "product-1-1")
Pob Drawing:
