9mW 940nm VCSEL Laser Chip
Ntsiab nta
⚫ 977 element array
⚫ 940nm Wavelength

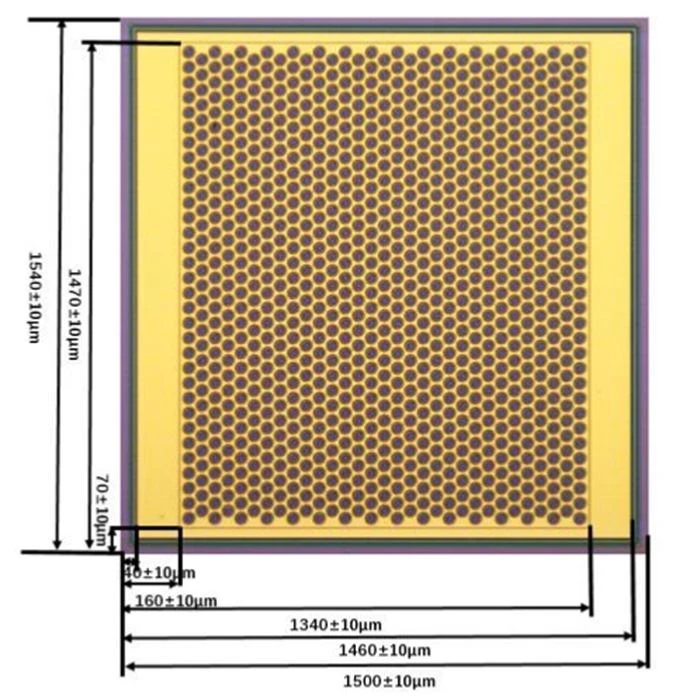

Qhov ntev
Qhov loj me yog 1500 * 1540um ^ 2
qw 43.5um
WB pad is 130um
Kev sib cuag sab saum toj yog anode
Hauv qab kev sib cuag yog cathode
Tuag thickness ~ 100um
Yam ntxwv
Yam khoom no: VC940LC4
| Parameter | Ntaus. |
| Center Wavelength | 940 ± 10nm |
| Tso zis zog | 4W |
| Spectra dav | 3nm ua |
| Slope Efficiency | 0.95W/A |
| Qhov ntsuas tam sim no | 1200A |
| Wavelength Temp. Coefficient | 0.07nm / degree |
| Kev khiav hauj lwm voltage | 2.3V |
Cov cuab yeej yog qhib -Heatsink Diode Laser; Nws tuaj yeem ua haujlwm hauv chav huv lossis plua plav-tsuas yog cov vaj tsev tiv thaiv. Kev khiav hauj lwm kub thiab txheeb ze av noo yuav tsum tau tswj kom tsis txhob muaj dej condensation ntawm laser facets. Txhua yam kab mob los yog kev sib cuag ntawm lub laser facet yuav tsum zam.
