Cov plaub hau tshem tawm Diode Laser 400w 760nm 808nm
Peb muab 400w 760nm 808nm Cov Plaub Hau Tshem Tawm Diode Laser.Thiab peb cov lag luam npog feem ntau ntawm cov teb chaws Europe thiab Asmeskas lag luam.
| Yam No.: MWWC808VS400 | |

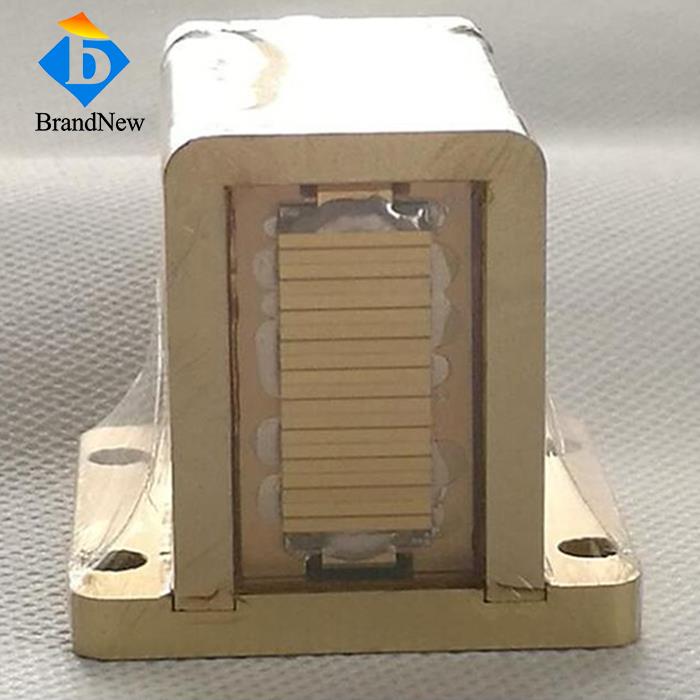

Khoom npe: Cov plaub hau tshem tawm Diode Laser 400w 760nm 808nm
Qhov zoo | |
Specifications | |
| Kho qhov muag | |
| Center Wavelength λ | 760 ± 20nm |
| Tso zis zog | 200W |
| Number of Bars | 2 |
| Center Wavelength λ | 808 ± 20nm |
| Tso zis zog | 200W |
| Number of Bars | 2 |
| Ua hauj lwm hom | QCW |
| Pitch Ntawm Bars | 3.4mm ib |
| Fast Axis Divergence (FWHM) | ~ 37 Deg |
| Slow Axis Divergence (FWHM) | ~14 Deg |
| Pulse Dav | 10 ~ 400ms |
| Lub luag haujlwm Cycle | 1~42% |
| Hluav taws xob | |
| Kev khiav hauj lwm tam sim no Iop | 80~120A |
| Threshold Current Ith | 15A~20A |
| Ua haujlwm Voltage Vop | 10.5V~10.8V |
| Fais fab Hloov Efficiency | 48% |
| Kub | |
| Kev khiav hauj lwm kub (tsis muaj condensation) | 15 ~ 30 ℃ (tsis muaj condensation) |
| Cia kub (tsis muaj condensation) | 0-55 ℃ (tsis muaj condensation) |
Peb Campany
Hangzhou Brandnew Technology Co., Ltd.
Core Competency
◆ Diode Ntim ◆ Beam Shaping
◆ Kev ntsuam xyuas kev ntseeg siab ◆ Ua kom txias txias
Factory Saib
Cov ntawv pov thawj
Cim npe nrov: Cov plaub hau tshem tawm Diode Laser 400w 760nm 808nm lwm tus neeg, manufacturers Tuam Tshoj, hoobkas, lag luam wholesale, ua nyob rau hauv Suav teb
