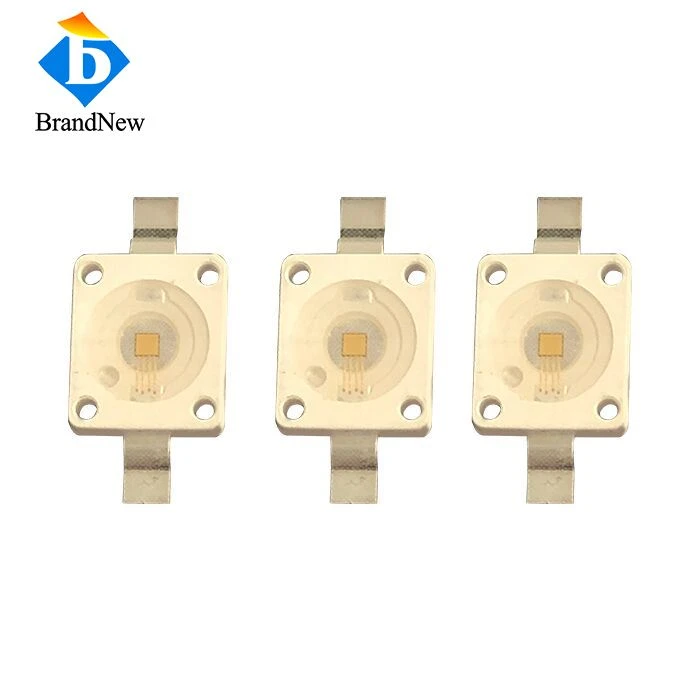

VCSEL Diode Chip Rau Kev Ruaj Ntseg

Yam khoom no: VC850SMD15

Xa kev nug

Hauj lwm lawm

VCSEL Diode Chip rau Kev Ruaj Ntseg

Product Description

VCSEL (Vertical Cavity Surface-Emitting Laser): Hloov cov tsom iav ntawm cov kab noj hniav, nws siv cov txheej txheem epitaxial loj hlob ntawm lub wafer los tsim cov iav ntawm qhov chaw nrog lub LED sandwiched nyob nruab nrab ntawm. Cov khaubncaws sab nraud povtseg no tuaj yeem tsim cov lo ntsiab muag kom pom lub teeb rau hauv lub khob nruj, zoo meej rau kev sib txuas rau fibers.

Nta

850nm VCSEL, 940nm wavelength yog muaj

Cov zis hluav taws xob los ntawm 4mW-50W, rau koj xaiv

TO46, Array pob khoom xaiv tau

Lub sijhawm luv luv

Yooj yim rau collimate

Daim ntawv thov

Kev ruaj ntseg ntse

Lub koob yees duab infrared hmo ntuj pom lub teeb, ua kom pom HD duab, ntau qhov chaw zoo li qub, lub neej ntev dua, kev siv hluav taws xob qis dua, intruder -preventiondetection, thiab lwm yam.

Specifications:

Tsis muaj	Ntaus.
Pulse Optical Fais Fab	15W
Hnub Nyoog Tam Sim No	0.05A
Forward Pulse Current	20A
Emission Area	215 * 226 hli
Peak Wavelength	850nm / 940nm
Pulse Forward Voltage	16V
Beam Angle	20 Degrees
Wavelength ua haujlwm	0.07nm / degree
Sawv sij hawm	2.4n ib
Soldering Kub	260 degree
Substrate	AlN/CuAg
Case Kev Ua Haujlwm Temp	-40 ~ 85 degree
