Brandnew Technology, yog ib lub tuam txhab diode laser manufacturers thiab lwm tus neeg nyob hauv Suav teb, muaj lub Hoobkas tshaj lij uas cov tuam txhab zoo 10mw 780nm 790nm to56 ld sensor thiab muag ntawm tus nqi sib tw. Txais tos rau wholesale peb cov khoom ua nyob rau hauv Suav teb.

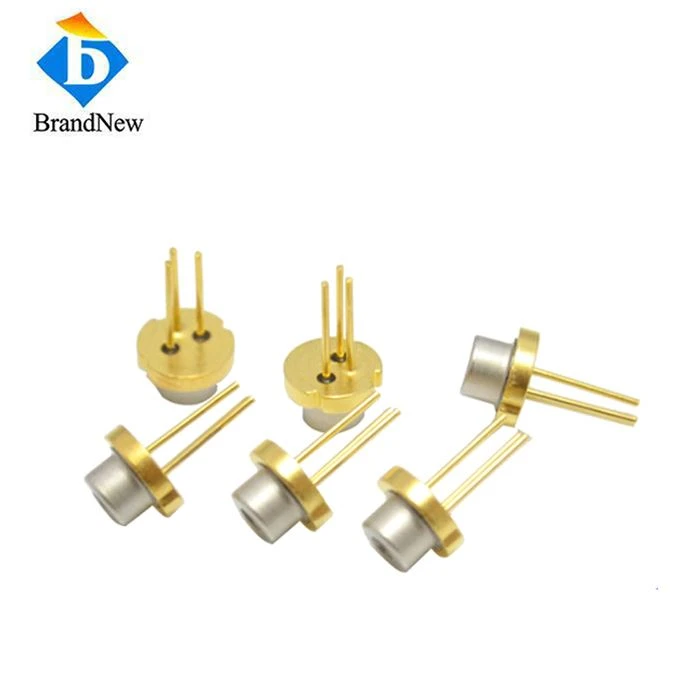

10mW 780nm 790nm TO56 LD Sensor
Nta:
780nm / 790nm nruab nrab wavelength
TO 56 pob
AR coated qhov rais
AIN cab kuj, AuSn bonding
Tsawg beam divergence thiab me me lub teeb emitting aperture
Kev ua haujlwm ruaj khov thiab txhim khu kev qha
Lub neej ntev> 10000hours
Daim ntawv thov:
Kev kho lub cev, qhia, laser zaub, laser sensor
Daim ntawv qhia:
Yam khoom no: TO780DL10
| Kho qhov muag | |
| Center Wavelength | 780nm ua |
| Wavelength kam rau ua | ± 10nm |
| Tso zis zog | 10mW ua |
| Hluav taws xob | |
| Kev khiav hauj lwm tam sim no Iop | 22 mA |
| Threshold Current Ith | 15 mA |
| Ua haujlwm Voltage Vop | 2.3V |
| Saib xyuas tam sim no | 0.3mA ua |
| Kub | |
| Ua haujlwm kub | -40~70℃ |
| Cia Kub | -40~80℃ |
Daim duab:
