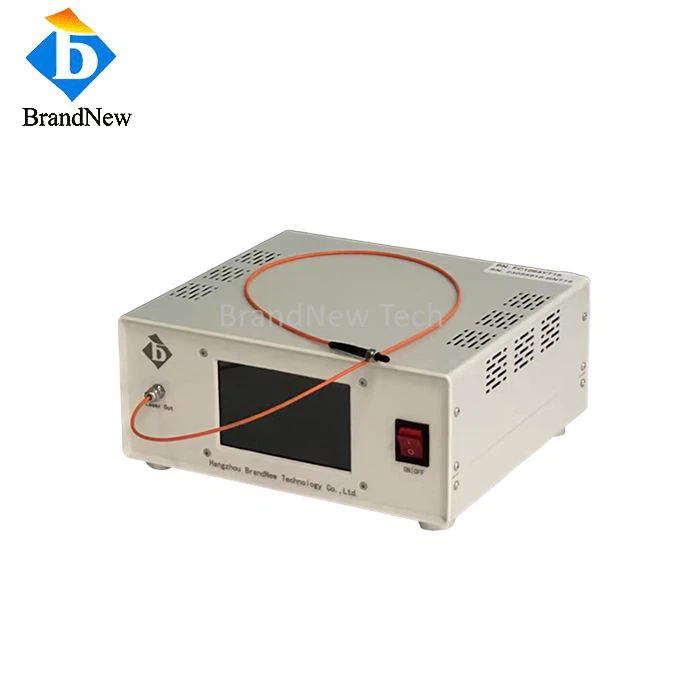

50W 808nm Fiber Coupled Diode Laser System
Cov yam ntxwv tseem ceeb:
- Cov neeg siv-adjustable laser tso zis zog ntawm 0 mus rau 50 watts; user-controlable rau tag nrho cov kev ua haujlwm laser
-
Cov zis fais fab, CW/QCW: 0 - 50 Watts, Tus neeg siv hloov tau
-
Txoj kev ua kom txias: TEC-Peltier Coolers, dual kiv cua kom tshem tawm cua sov
-
Pem hauv ntej vaj huam sib luag LCD nrog tag nrho alphanumeric zaub
daim ntawv thov:
- Biomedical & Kev Kho Mob
- Kev sim tshuaj,
- Laser kuaj
TEC Raws li Kev Tswj Xyuas Kub Kub:
Cov chav no muaj kev sib xyaw ua ke siab zog TEC kub tswj nrog tag nrho PID tswj lub voj kom xa tawm sai thiab ua kom muaj cua sov tshem tawm los ntawm qhov chaw laser module. Lub laser diode yog ntsia rau ntawm Peltier / TEC txias, npib tsib xee plated tooj liab mounting phaj. Lub phaj mounting muaj qhov ua tiav siab heev thiab flatness rau qis thermal impedance. Cov phaj txias mounting rau lub laser yog txuas nrog lub kiv cua txias cua kom tshem tawm cov khib nyiab cua sov thiab ua kom lub laser kub ruaj khov.
QCW thiab Modulation Functions:
Ntxiv nrog rau tus qauv CW hom, cov khoom siv no muab cov khoom siv sab nraud thiab cov khoom siv hluav taws xob, nrog rau lub tshuab hluav taws xob ua haujlwm sab hauv rau quasi-CW mem tes daim ntawv thov. Lub tshuab hluav taws xob ua haujlwm sab hauv yog siv los tsim QCW pulses los ntawm 20 μs rau CW. Tus maub los kuj lees txais lub teeb liab sab nraud los ntawm QCW trigger. Modulation tuaj yeem yog TTL lossis analogue ntawm DC mus rau 50 kHz;
Daim ntawv hnub
Yam khoom NO.:TIAB SA 808YT50
| Kho qhov muag | |
| Center Wavelength | 808nm ua |
| Wavelength kam rau ua | ± 10nm |
| Tso zis zog | 50W |
| Fiber ntau | |
| Fiber ntau aperture | 0.22 NAS |
| Fiber Length | 1m |
| Fiber connector | SMA905 |
| Hluav taws xob | |
| Kev ua haujlwm tam sim no Lop | 45A |
| Threshold Current Lth | 2A |
| Ua haujlwm Voltage Vop | 45V |
| Kub | |
| Kev ntsuas kub | 25 degree |
| Cia kub | -30 ~ 70 degree |
Laser loj:
